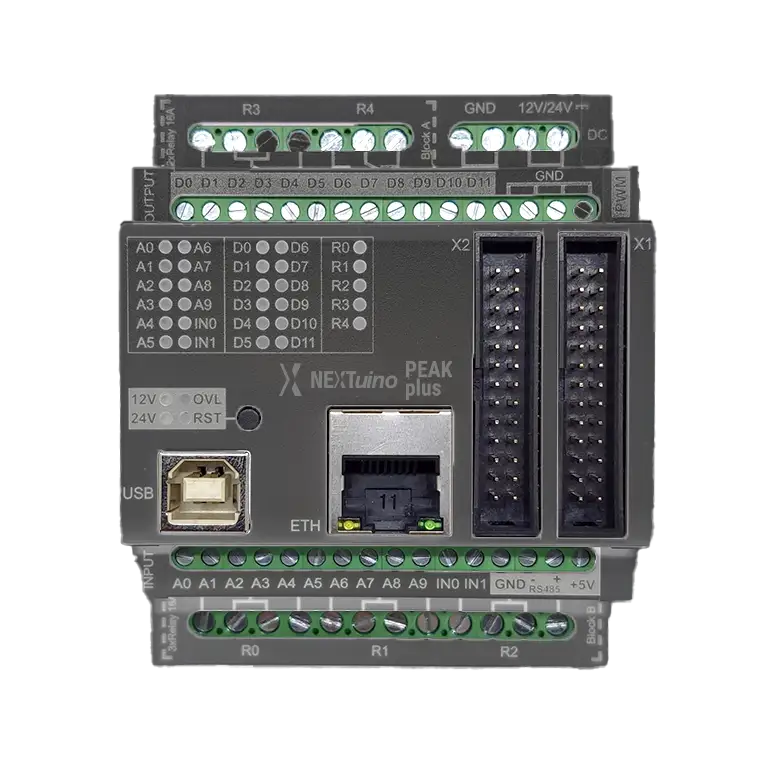

ATmega2560 industrial control with 16 A high-current power relay outputs.
NEXTuino PEAK PLUS brings the same processing and digital I/O as the standard PEAK, but replaces standard relay outputs with 5 high-current power relays rated to 16 A / 240 V AC — suited to motor starters, large solenoids and heating elements. RS-485 Modbus RTU and Ethernet are both included.
| Microcontroller | ATmega2560 @ 16 MHz |
|---|---|
| Flash / SRAM / EEPROM | 256 KB / 8 KB / 4 KB |
| Digital Inputs | 12 × protected, 12/24 V DC logic |
| Digital Outputs | 12 × transistor, up to 2 A each |
| Power Relay Outputs | 5 × heavy-duty relay, up to 16 A / 240 V AC |
| Analog Inputs | None |
| Communication | RS-485 Modbus RTU, Ethernet (W5100), UART, SPI, I²C |
| Arduino Headers | Full Arduino Mega 2560 pin headers |
| Supply Voltage | 12 V DC or 24 V DC |
| Power Consumption | < 3 W (controller only) |
| Operating Temperature | -10 °C to +55 °C |
| Dimensions (H × W × D) | 90 × 72 × 62 mm |
| Weight | ~ 270 g |
| Mounting | DIN rail (EN 60715) |
| Certification | CE |
16 A relay outputs switch motor contactor coils and direct online starters reliably.
High-current relays switch industrial heating elements, kilns and heat-trace circuits.
Power relays handle the inrush current of large pneumatic and hydraulic solenoid valves.
Ethernet and RS-485 Modbus RTU connect to SCADA systems and field instrument buses.
Replace traditional contactor-based relay panels with a single programmable module.
Sequence high-power pump motors with 16 A contacts and monitor via Modbus sensors.
The PLUS focuses on output quality over quantity. Its 5 power relays are rated to 16 A — significantly higher than the 10 A rated relays on the PEAK — making it better suited to motor starters, large solenoid valves and heating elements.
Yes. Like the standard PEAK, the PLUS includes an on-board RS-485 transceiver for Modbus RTU communication.
The PLUS FLEX adds 6 more digital inputs (18 total) and 0–10 V analog I/O, but operates on 24 V only. The standard PLUS supports both 12 V and 24 V supply.
