18 digital inputs, power relays and 0–10 V analog I/O — the most versatile PEAK variant.

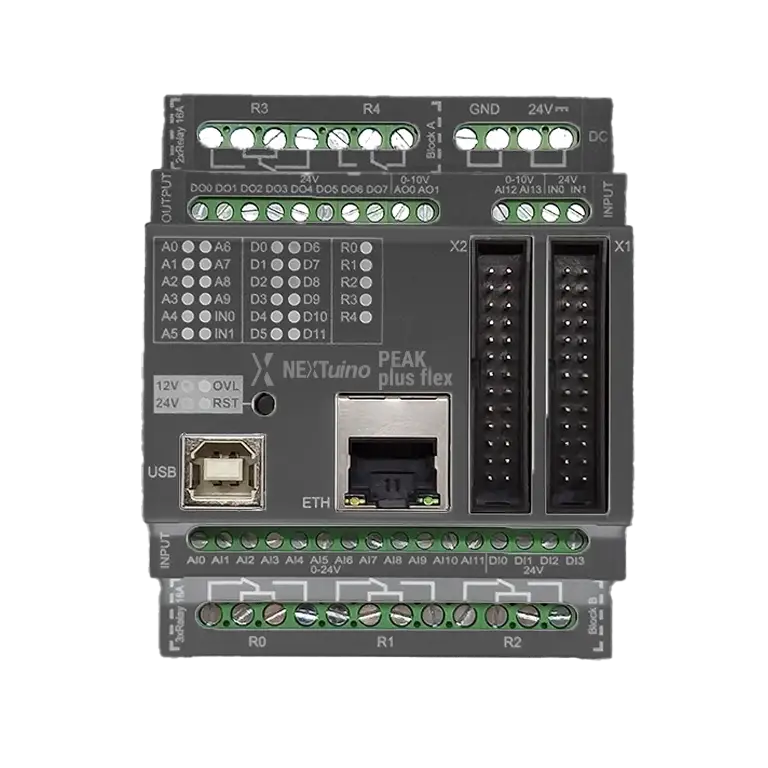

NEXTuino PEAK PLUS FLEX combines extended digital inputs, high-current power relay outputs and 0–10 V analog channels in a single DIN-rail module. Designed for 24 V automation systems that need to control heavy loads while reading analogue sensors and commanding variable-output actuators.
| Microcontroller | ATmega2560 @ 16 MHz |
|---|---|
| Flash / SRAM / EEPROM | 256 KB / 8 KB / 4 KB |
| Digital Inputs | 18 × protected, 24 V DC logic |
| Digital Outputs | 8 × transistor, up to 2 A each |
| Power Relay Outputs | 5 × heavy-duty relay, up to 16 A / 240 V AC |
| Analog Inputs | 2 × 0–10 V, 10-bit resolution |
| Analog Outputs | 2 × 0–10 V |
| Communication | Ethernet (W5100), UART, SPI, I²C |
| Arduino Headers | Full Arduino Mega 2560 pin headers |
| Supply Voltage | 24 V DC |
| Power Consumption | < 3.5 W (controller only) |
| Operating Temperature | -10 °C to +55 °C |
| Dimensions (H × W × D) | 90 × 72 × 62 mm |
| Weight | ~ 270 g |
| Mounting | DIN rail (EN 60715) |
| Certification | CE |
18 digital inputs detect dense sensor networks while 16 A relays switch motor contactors.
0–10 V outputs command proportional hydraulic or pneumatic valves with precision.
Power relays handle heating element loads; analog inputs read thermocouple transmitters.
Ethernet connects to SCADA HMI and remote monitoring systems over TCP/IP.
Dense digital I/O handles sensor-rich packaging machinery with analogue fill control.
Mixed I/O for damper control, VSD commands and temperature sensor reading.
No. Like the FLEX variant, the PLUS FLEX does not include an on-board RS-485 transceiver. Choose the standard PEAK or PLUS if RS-485 Modbus RTU is required without an external module.
Yes. The 5 power relay outputs are rated to 16 A / 240 V AC — suitable for motor starters, heating elements, large solenoid valves and similar industrial loads.
The PLUS FLEX replaces the FLEX's 10 standard relay outputs with 5 high-current power relays. The analog I/O and digital I/O counts remain the same.
